Precision Grouting & Anchoring
High-strength grouts and anchoring systems for structural connections, equipment mounting, and precision applications
PRECISION GROUTING & ANCHORING
Usman Consultants offers a complete range of high-performance grouting and anchoring systems for structural connections, equipment mounting, and precision applications. From non-shrink cementitious grouts to high-strength epoxy systems and versatile chemical anchors — our solutions are engineered to deliver exceptional performance, reliability, and durability in the most demanding environments.
80+
MPa Grout Strength
200+
kN Anchor Load
0.5
mm Tolerance
100%
Non-Shrink

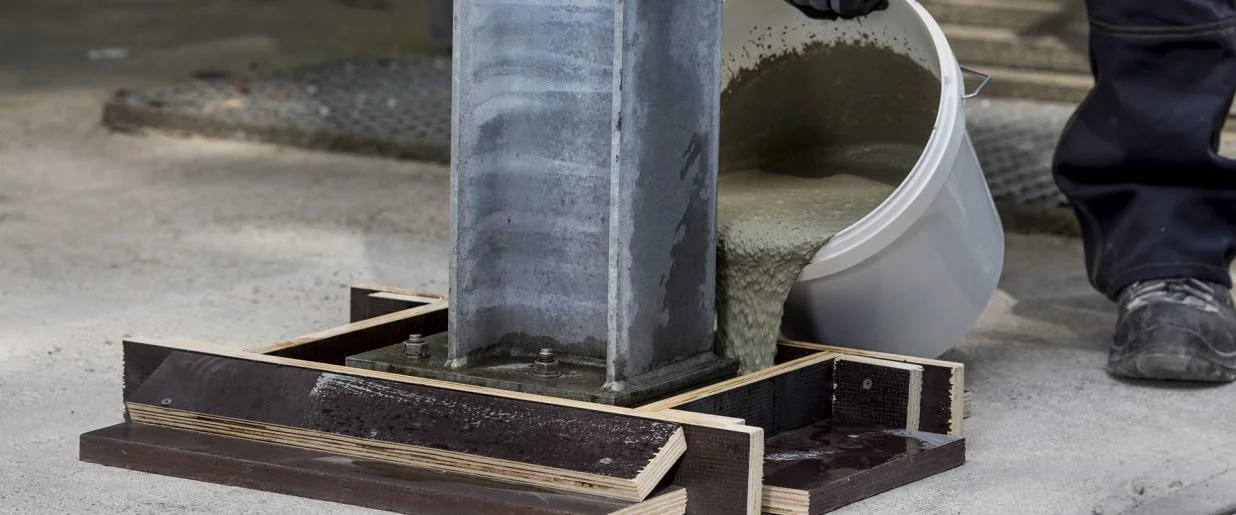

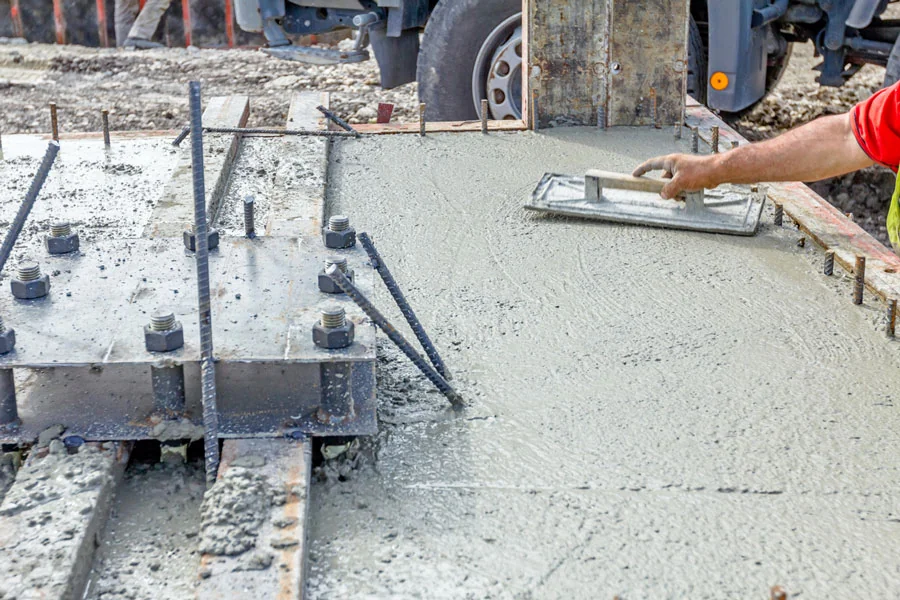

High-performance non-shrink cementitious grouts engineered for precision equipment anchoring, structural connections, and heavy-duty applications — delivering exceptional strength, dimensional stability, and reliability.
Cementitious Grouts
80+
MPa Strength
100%
Non-Shrink
0.5
mm Tolerance
Equipment Bases
Column Pads
Anchor Bolts
Structural Joints
Exceptional compressive strength exceeding 80 MPa — engineered for heavy equipment anchoring, structural connections, and load-bearing applications requiring superior performance.
Precision non-shrink technology ensures zero shrinkage during curing — maintaining accurate alignment, consistent support, and reliable load transfer for critical equipment and structural components.
High-flow, self-leveling consistency penetrates tight spaces and complex geometries — ensuring complete filling of voids, grout pockets, and anchor bolt areas for reliable performance.
Achieves high early strength in 24 hours — enabling rapid equipment installation, reduced downtime, and faster project completion without compromising ultimate performance.
Precision Grout
80+ MPa
High-strength
Flowable Grout
60+ MPa
Self-leveling
Rapid Set Grout
50+ MPa
Fast setting
Underwater Grout
40+ MPa
Submerged application

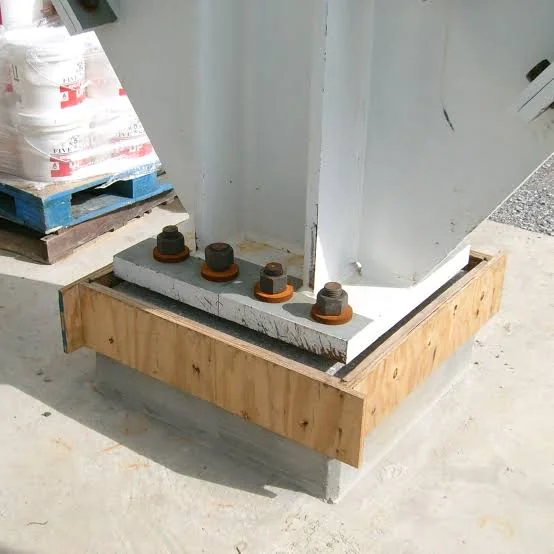

Two-component epoxy grouts delivering exceptional compressive strength, chemical resistance, and precision performance for heavy-duty equipment anchoring and structural applications.
Epoxy Grout System
Compressive strength exceeding 100+ MPa for the most demanding applications
Superior resistance to acids, alkalis, oils, and aggressive chemicals
Full load capacity in 24-48 hours — minimal downtime
Precision dimensional stability — guaranteed

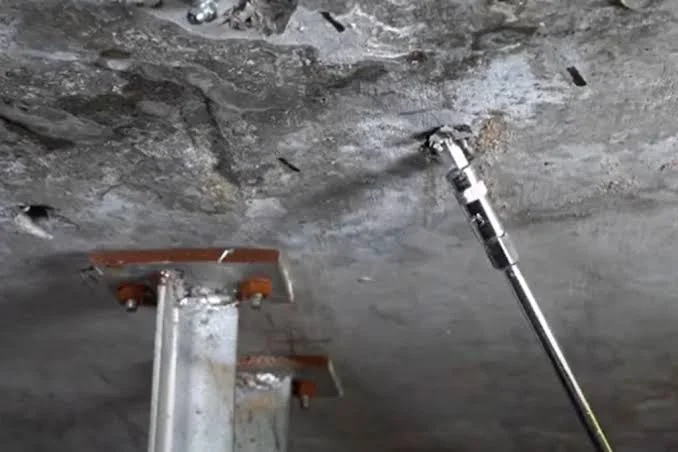

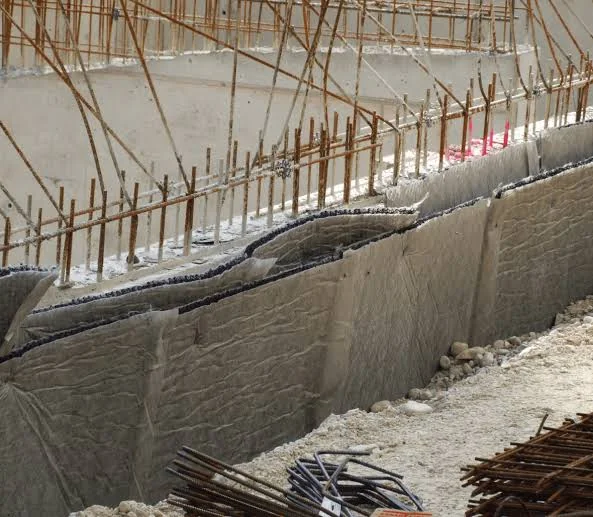

Polyurethane grouts offering exceptional flexibility, impact resistance, and vibration damping for dynamic applications, expansion joints, and waterproofing.
Elongation exceeding 500% — absorbs movement, vibration, and thermal expansion without cracking.
>500% Elongation

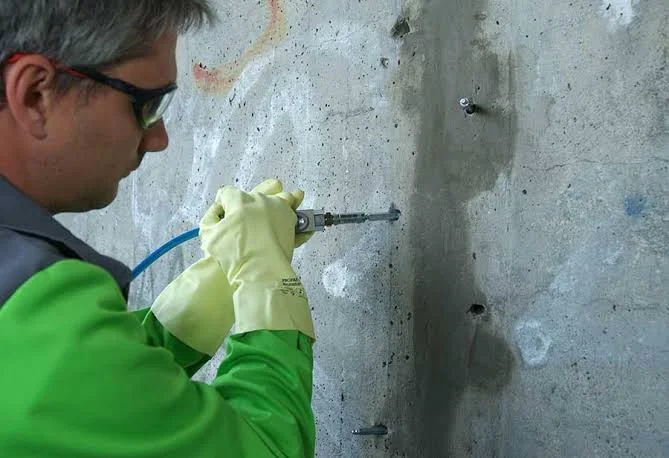

Excellent water resistance — ideal for expansion joints, sealing, and wet environment applications.
100% Waterproof
Superior shock absorption and vibration damping — ideal for machinery bases and dynamic loads.
Shock Absorbing>500%
Elongation
-30°C
Low Temp Resistance
100%
Waterproof
25+
Years Service Life

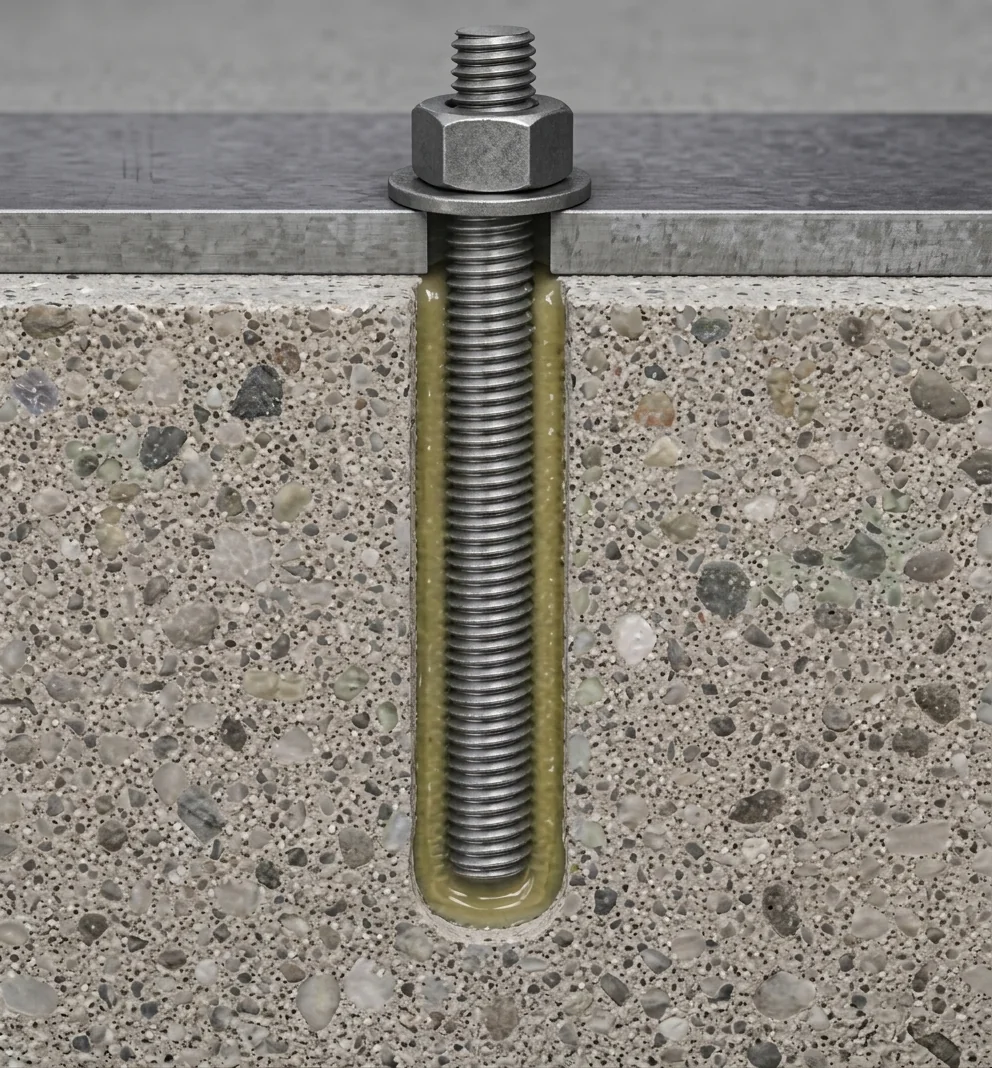

High-performance chemical anchoring systems for structural connections, rebar fixing, and heavy-duty applications — delivering superior bond strength and reliability.
Chemical Anchoring
Polyester Resin
Cost-effective · 10-150 kN
Epoxy Resin
High-strength · 15-200+ kN
Hybrid Resin
Versatile · 10-180 kN
Injection Systems
Precision · Custom applications
10 – 200+ kN
10 – 60 minutes
-5°C to +40°C
300ml · 400ml · 1000ml
Fast, reliable mechanical anchoring systems for general construction, light to medium-duty applications — providing instant fixing without curing time.
Mechanical Anchors
Wedge · Sleeve · Screw Anchors
Heavy-duty · 5-100 kN load
Versatile · 3-50 kN load
Fast fixing · 2-30 kN load
| Type | Load Capacity | Size Range | Base Material | Application |
|---|---|---|---|---|
| Wedge Anchors | 5 – 100 kN | M6 – M30 | Concrete | Heavy equipment |
| Sleeve Anchors | 3 – 50 kN | M6 – M20 | Brick · Block | General fixing |
| Screw Anchors | 2 – 30 kN | M6 – M16 | Lightweight | Fast fixing |
KNOWLEDGE CENTER
We offer a comprehensive range of grouting and anchoring systems including cementitious grouts, epoxy grouts, PU grouts, chemical anchors (polyester, epoxy, hybrid), and mechanical anchors (wedge, sleeve, screw) — each engineered for specific performance requirements and load conditions.
Cementitious grouts are non-shrink, high-strength (80+ MPa) grouts ideal for precision equipment anchoring. Epoxy grouts offer exceptional chemical resistance and compressive strength exceeding 100 MPa for heavy-duty applications. PU grouts provide superior flexibility (>500% elongation), impact resistance, and vibration damping for dynamic applications.
Chemical anchors use resin (polyester, epoxy, or hybrid) to bond the anchor to the substrate, offering high load capacity (10-200+ kN) and are ideal for structural connections and rebar fixing. Mechanical anchors (wedge, sleeve, screw) provide instant fixing without curing time, suitable for general construction and medium-duty applications.
For heavy equipment anchoring, we recommend precision cementitious grouts (80+ MPa) or epoxy grouts (100+ MPa). These non-shrink formulations provide exceptional load transfer, dimensional stability, and chemical resistance — ensuring reliable performance for heavy machinery, compressors, and industrial equipment.
Our technical team assesses your project requirements including load capacity, substrate type, environmental conditions, and installation method to recommend the optimal anchoring system. We provide detailed proposals with specifications, installation guidelines, and compliance documentation. Contact us for a free consultation.
All our grouting and anchoring products meet international standards including EN 1504, ASTM C1107 (cementitious grouts), ASTM C881 (epoxy grouts), EN 1992-4 (anchors), and are ISO 9001 certified. Products are SGS tested for quality assurance and performance verification.
Secure Your Structures
Partner with Usman Consultants for high-performance grouting and anchoring solutions that deliver strength, reliability, and precision. From cementitious and epoxy grouts to chemical and mechanical anchors — quality, reliability, and technical excellence for every structural connection.
